Description
Product Overview

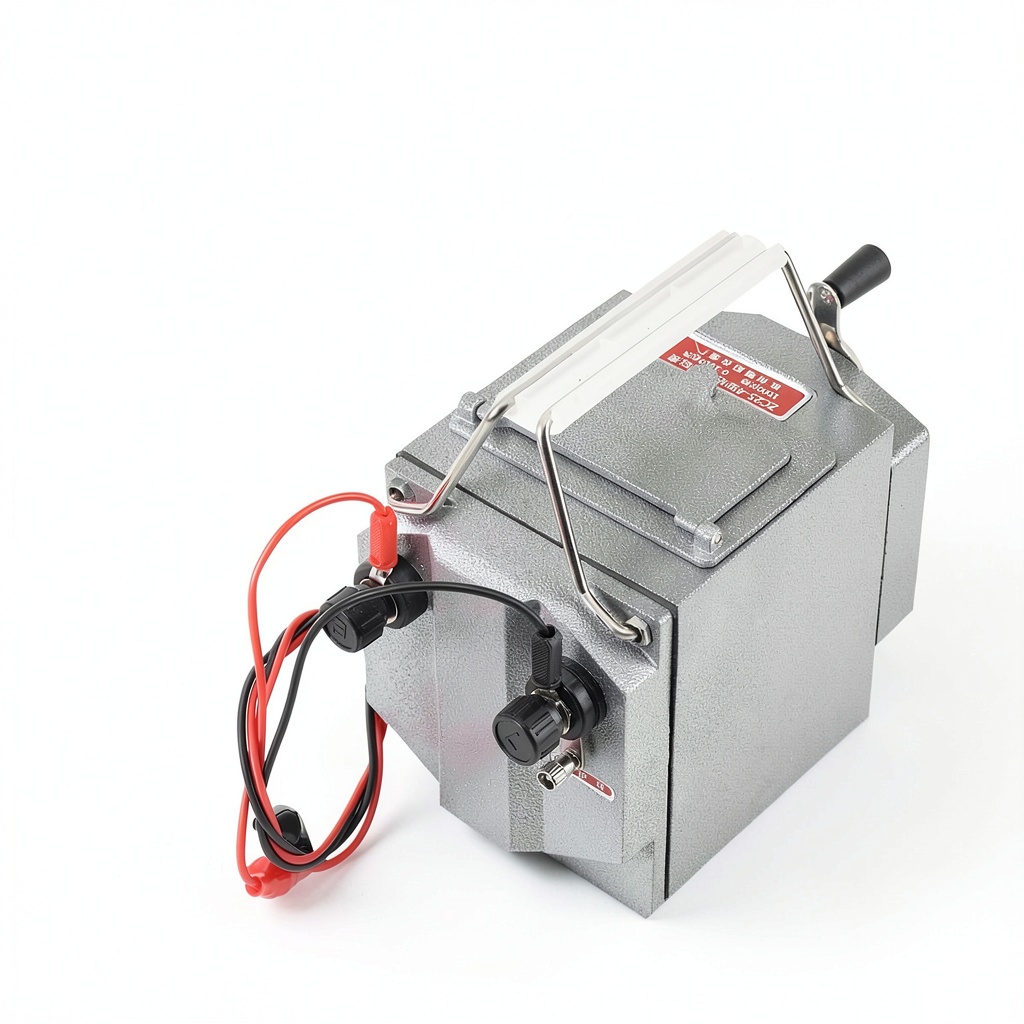

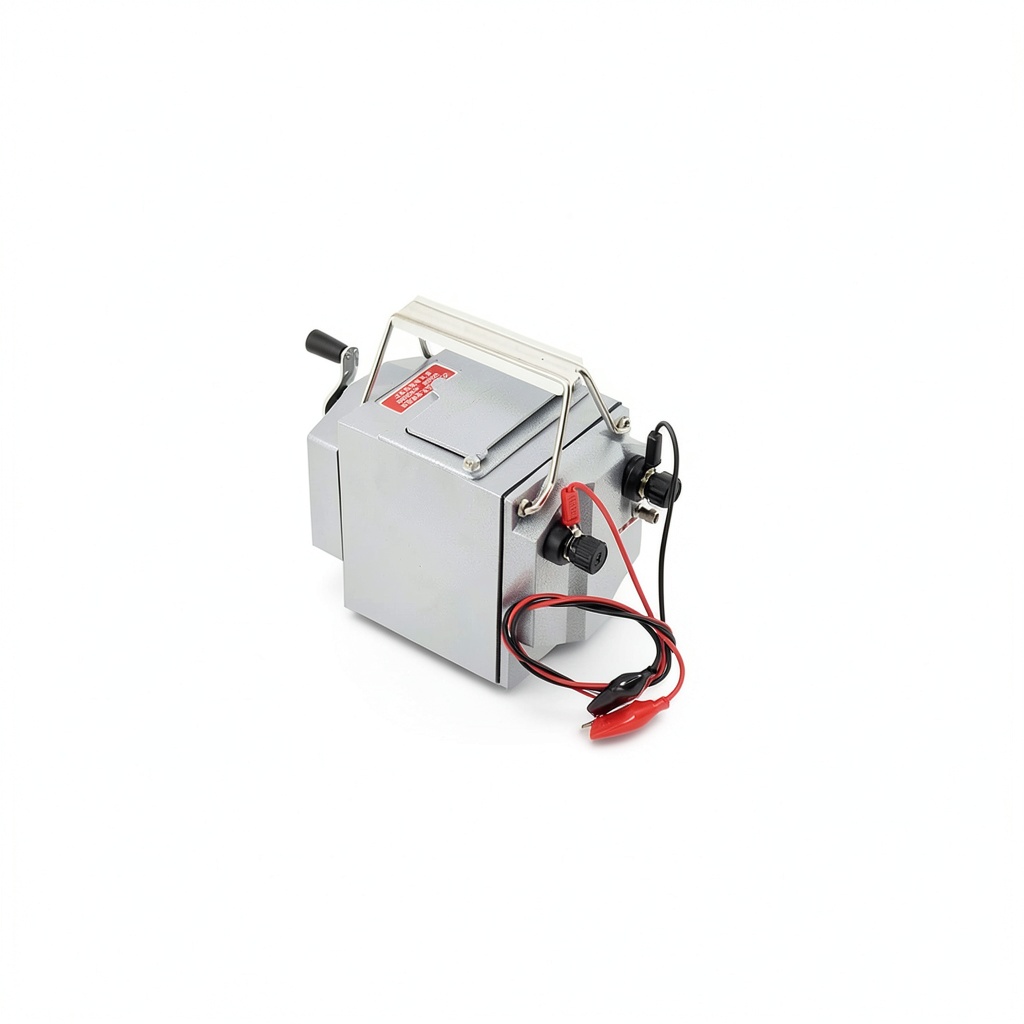

The ECUTEE 1000MΩ Insulation Resistance Tester is engineered for professionals who demand accurate, repeatable measurements in a compact, rugged package. Designed with a high‑precision dial and a smooth‑operating hand crank, the instrument delivers reliable resistance readings from 0.1 MΩ up to 1000 MΩ, making it suitable for a broad spectrum of insulation testing tasks. The device’s 1000 V rating provides ample headroom for low‑ and medium‑voltage applications, while the 120 RPM hand‑crank ensures consistent energy input for stable measurements.
At the heart of the tester is a solid aluminum alloy case that protects internal components from impact, moisture, and temperature extremes. The aluminum shell not only adds structural strength but also dissipates heat efficiently, extending the lifespan of the meter in harsh field conditions. The case is finished with a matte black coating that reduces glare and resists scratches, keeping the instrument looking professional even after frequent handling.
Technical specifications include a compact footprint of 10.04 × 7.09 × 6.10 inches and a lightweight design weighing just 2.76 pounds, allowing technicians to carry the tester comfortably in a toolbox or on a belt. The large, easy‑to‑read dial features a clear pointer and a Seiko‑grade gear train that minimizes backlash, delivering crisp readings even in low‑light environments. The hand‑crank mechanism incorporates a twill‑design gear that reduces effort, so users can generate the required test voltage with minimal fatigue.</n
Additional features such as a rubber‑coated grip, a detachable test lead set, and a built‑in protective cover for the dial further enhance usability. The tester complies with IEC 61010 safety standards, ensuring that it meets international requirements for electrical testing equipment. Whether you are troubleshooting a residential appliance, verifying motor insulation, or performing high‑voltage line inspections, this meter provides the confidence and durability needed for accurate diagnostics.
Usage
In residential settings, the ECUTEE tester is an invaluable tool for diagnosing faulty wiring, checking the integrity of appliance insulation, and verifying the safety of newly installed circuits. Electricians can quickly assess the condition of refrigerators, washing machines, and air‑conditioner compressors, identifying potential breakdowns before they cause costly repairs. The portable form factor allows the device to be taken into tight spaces, such as behind panels or inside equipment housings, without compromising measurement accuracy.
For industrial applications, the tester excels in motor maintenance, transformer inspection, and high‑voltage line testing. Maintenance crews can evaluate the insulation health of large induction motors, ensuring that winding resistance remains within acceptable limits. In power generation facilities, the instrument can be used to verify the insulation of generators, switchgear, and cable assemblies, helping to prevent unexpected outages. The robust aluminum construction also makes the tester suitable for outdoor field work, where exposure to dust, moisture, and temperature fluctuations is common.
Beyond traditional electrical testing, the meter is useful for research laboratories and educational institutions that require a reliable, easy‑to‑use instrument for teaching insulation concepts. Its clear dial and straightforward operation make it an excellent teaching aid for students learning about dielectric strength, leakage currents, and safety testing procedures. The device’s versatility extends to decorative lighting installations, where technicians can quickly confirm the insulation quality of low‑voltage LED strips and ornamental fixtures.
Why Choose Us
ECUTEE has built a reputation for delivering high‑quality testing equipment that balances performance with affordability. Each Insulation Resistance Tester undergoes a rigorous quality‑control process that includes calibrated component testing, environmental stress screening, and final functional verification. This ensures that every unit leaving the factory meets the exacting standards required by professional electricians and engineers.
The aluminum housing is sourced from certified suppliers who provide material certifications, guaranteeing that the case meets both mechanical strength and corrosion‑resistance criteria. The internal circuitry is designed with precision resistors and stable voltage sources, delivering consistent test results across a wide temperature range. ECUTEE also offers a comprehensive warranty and responsive after‑sales support, providing customers with technical assistance, spare parts, and repair services whenever needed.
Choosing the ECUTEE Insulation Resistance Tester means investing in a tool that will perform reliably for years, reducing downtime and improving safety on every job. The combination of durable construction, accurate measurement, and user‑friendly design makes this meter a preferred choice for both seasoned professionals and newcomers to the field.
Key Features
- Rugged aluminum case protects against drops, moisture, and temperature extremes
- Wide measurement range up to 1000 MΩ with 1000 V rating for versatile testing
- 120 RPM hand‑crank provides consistent energy input for stable readings
- Large, easy‑to‑read dial with Seiko‑grade gear reduces user fatigue
- Comprehensive after‑sales support and warranty for peace of mind
FAQ
What types of insulation can this tester evaluate?
The tester is suitable for evaluating insulation on household appliances, motor windings, transformer coils, cable assemblies, and high‑voltage equipment. It can also be used on decorative lighting and low‑voltage circuits.
How often should I calibrate the meter?
For optimal accuracy, it is recommended to calibrate the tester annually or after any significant impact or exposure to extreme conditions. Calibration can be performed by an authorized service center.
Can the hand crank be used continuously?
Yes, the hand crank is designed for continuous operation. The twill‑design gear reduces effort, allowing extended testing without causing hand fatigue.
What safety standards does the tester meet?
The device complies with IEC 61010 safety standards for electrical testing equipment, ensuring protection against electric shock and providing reliable performance in professional environments.
Is there a warranty included?
ECUTEE provides a one‑year limited warranty covering manufacturing defects, along with access to technical support and replacement parts throughout the warranty period.
Reviews
There are no reviews yet.
