ETCR Insulation Resistance Meter ETCR3500 Anti‑Interference

Description

Product Overview

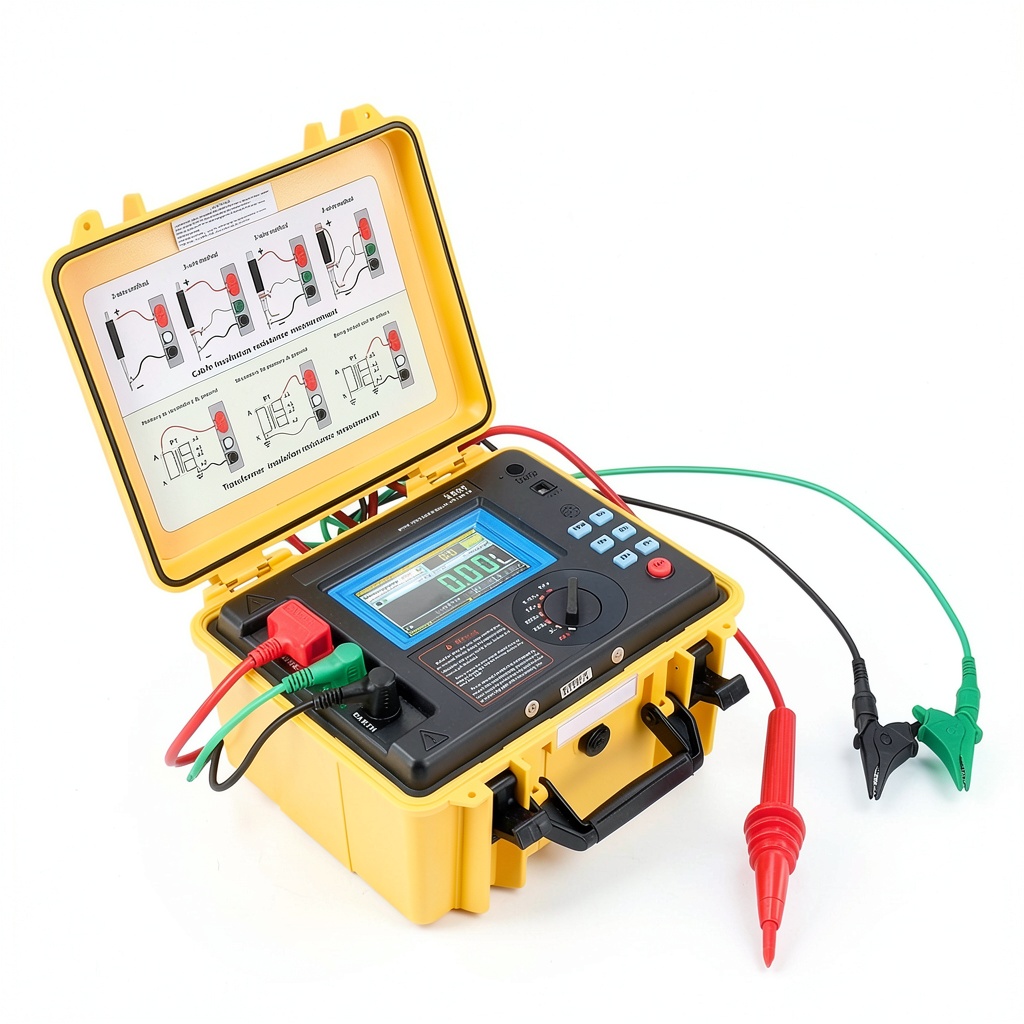

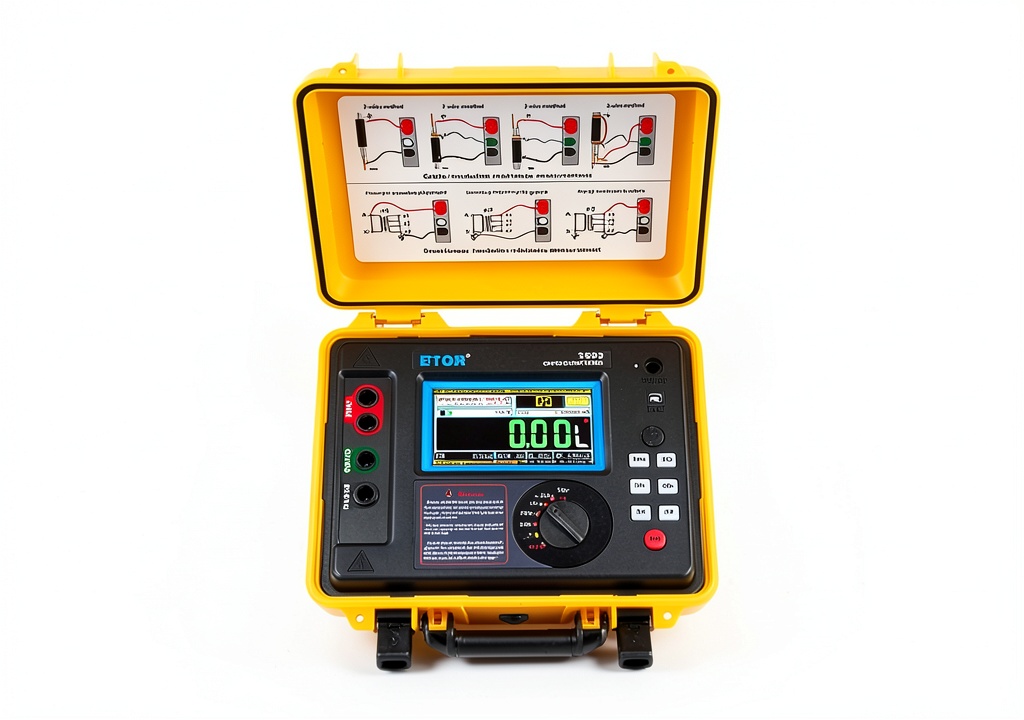

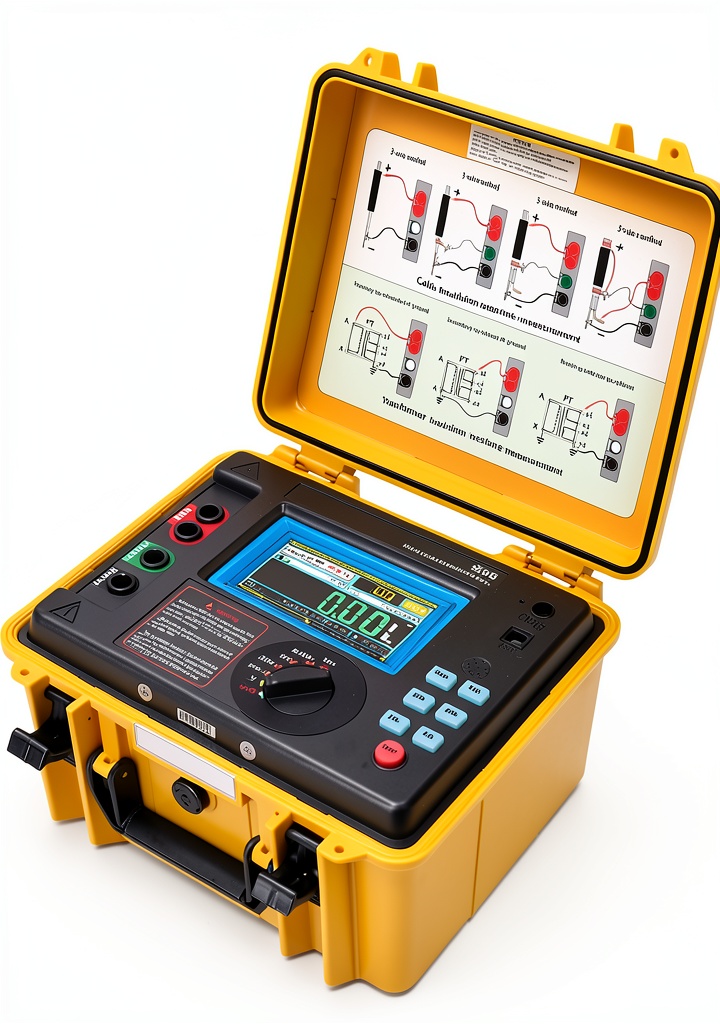

The ETCR3500 is a portable insulation resistance meter designed for demanding electrical testing environments. It features a full‑color touchscreen that shows real‑time test data, history records, and system status at a glance. Built with unique anti‑interference technology, the unit delivers stable results on large distributed capacitance sites such as long cables and in strong electromagnetic fields like substations. Core measurement functions include insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step, ramp, and both AC/DC voltage testing. The device also offers customizable test modes, user‑defined voltage and duration settings, and optional PI/DAR calculation formulas to meet specific site requirements.

Usage

Ideal for electrical contractors, maintenance engineers, and utility technicians, the ETCR3500 excels in field inspections, substation maintenance, and cable testing. Its automatic voltage monitor halts testing if live voltage exceeds 36 V, safeguarding both operator and equipment. The built‑in current and temperature monitors provide continuous feedback, while the automatic discharge function quickly releases residual charge after each test, eliminating the need for external discharge circuits. Data can be stored locally—up to 1,000 test records with timestamps—and transferred via USB for detailed analysis on a computer.

Why Choose Us

ETCR combines decades of expertise in industrial measurement tools with rigorous quality control to deliver reliable performance. The ETCR3500’s robust housing meets industrial standards, and each unit undergoes comprehensive calibration before shipment. Our after‑sales support includes a one‑year warranty, online technical resources, and responsive customer service to ensure uninterrupted operation in critical applications.

Key Features

• Vivid touchscreen displays live data and history for easy operation.
• Strong anti‑interference design ensures accurate results on long cables and in high‑EMI areas.
• Automatic safety monitors protect users by stopping tests when voltage exceeds safe limits.
• Large memory stores up to 1,000 test records with date and time for quick review.
• Comprehensive after‑sales support with warranty and technical assistance.

FAQ

Can the ETCR3500 test both AC and DC voltages?

Yes, the meter supports both AC and DC voltage testing, allowing versatile measurement across various applications.

How does the automatic discharge function work?

After each test, the device safely releases residual charge from the measured object without needing an external discharge circuit.

Is the data export compatible with common analysis software?

Data can be transferred via USB in standard CSV format, which can be opened in spreadsheet programs and specialized analysis tools.

What is the operating temperature range?

The built‑in temperature monitor works from 0 °C to 50 °C, displaying ambient conditions to ensure reliable testing.

Does the meter require regular calibration?

ETCR provides a one‑year warranty that includes calibration verification; periodic professional calibration is recommended for long‑term accuracy.
