M500 Megohmmeter Insulation Meter by Caviartool 500V 1000MΩ

Description

Product Overview

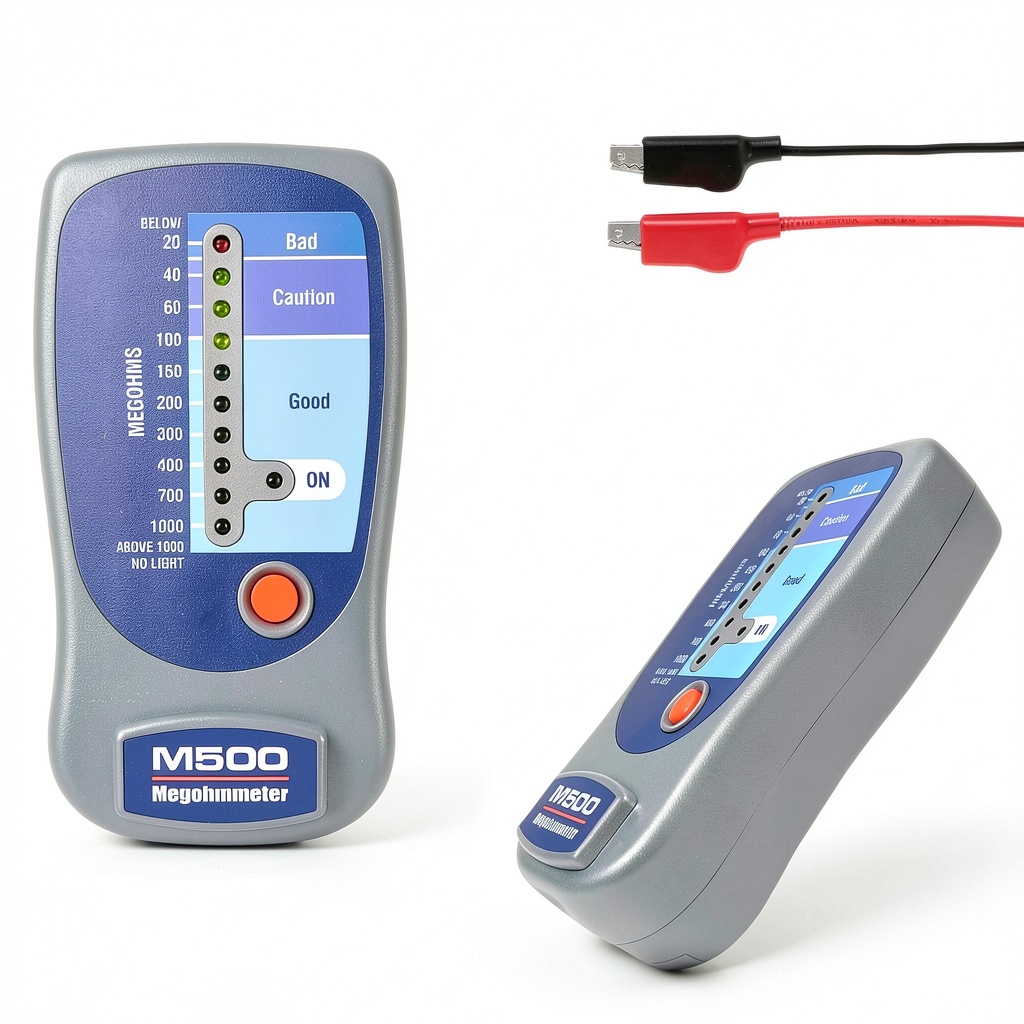

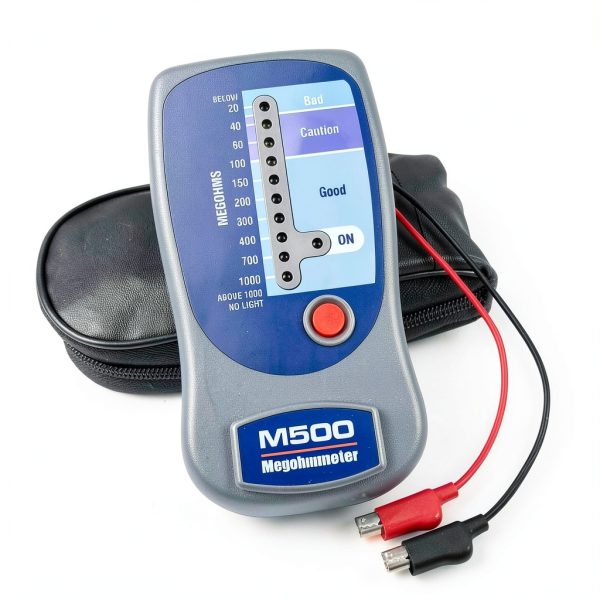

The M500 Megohmmeter is a purpose‑built insulation resistance meter designed for accurate, high‑voltage testing in industrial and field environments. Engineered by Caviartool, the device offers a measurement range from 20 MΩ to 1000 MΩ, allowing technicians to verify the integrity of cables, transformers, motors, and other electrical components with confidence. The built‑in 500 V test voltage provides a safe yet powerful excitation source, while the dual‑C‑battery power system ensures long operational life without frequent recharging. Its rugged housing meets IP‑rated protection standards, resisting dust, moisture, and accidental drops. The back panel is removable, providing dedicated storage for two 6‑inch test leads, which are included in the package along with a soft carrying case and a comprehensive operating manual. Dimensions of 1 × 6 × 6.9 inches and a weight of just 10.86 oz make the M500 easy to carry in a tool belt or toolbox, while the intuitive digital display presents clear readings in megohms, eliminating guesswork and reducing the chance of human error.

Usage

The M500 excels in a variety of real‑world scenarios. Electrical maintenance crews use it to perform routine insulation checks on HVAC systems, ensuring that coils and windings remain free of moisture and contamination. Power plant operators rely on the meter for pre‑shutdown verification of generator windings, where accurate megohm readings are critical to prevent costly equipment failures. Field service engineers appreciate the portable design when troubleshooting motor failures on remote sites, where quick access to a reliable insulation tester can mean the difference between a fast repair and prolonged downtime. Safety inspectors also benefit from the device’s ability to quickly assess grounding integrity in commercial buildings, confirming that protective earth paths meet regulatory standards. The removable back panel and included test leads simplify set‑up, while the soft case protects the instrument during transport between job sites.

Why Choose Us

Choosing the M500 Megohmmeter means selecting a product backed by Caviartool’s reputation for precision engineering and durable construction. Each unit undergoes rigorous quality control testing to verify measurement accuracy across the full 20‑to‑1000 MΩ range, ensuring that you receive a tool you can trust day after day. The meter’s ergonomic layout reduces operator fatigue, and the clear LCD readout minimizes misinterpretation of results. In addition to the hardware, Caviartool provides responsive technical support, a one‑year warranty, and access to online resources such as calibration guides and troubleshooting videos. This comprehensive service package gives you peace of mind that the instrument will remain calibrated and functional throughout its service life, protecting your investment and supporting your operational efficiency.

Key Features

• Wide measurement range from 20 MΩ to 1000 MΩ for versatile insulation testing.

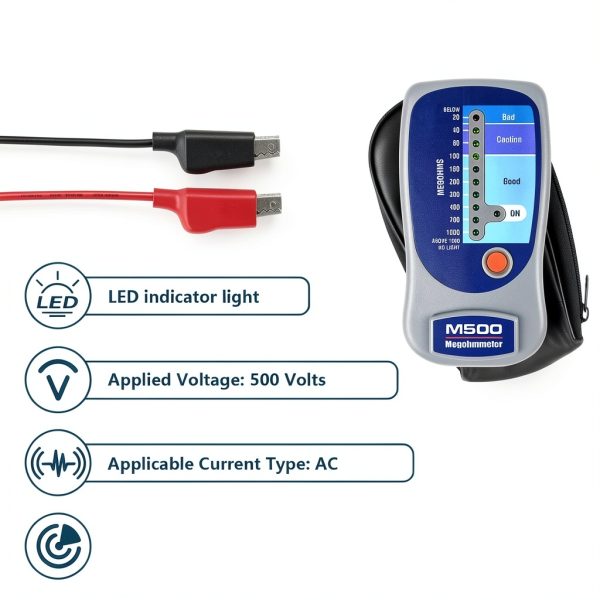

• Built‑in 500 V test voltage delivers reliable excitation without external power.

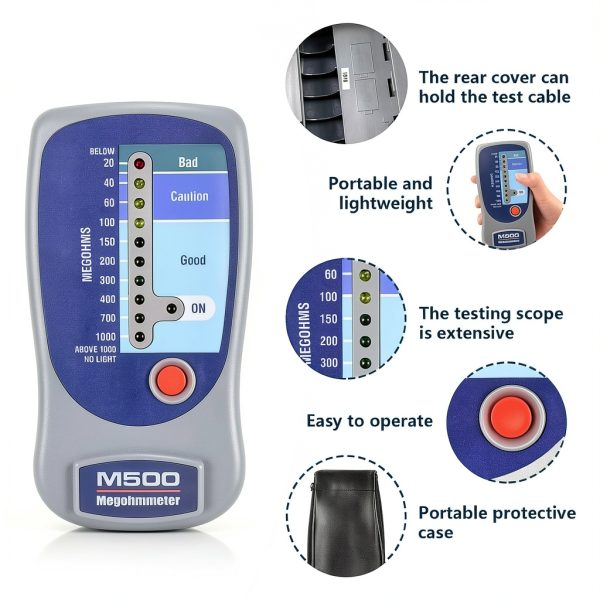

• Compact, lightweight design with removable back panel for easy lead storage.
• Durable, IP‑rated housing protects against dust, moisture, and drops.
• Comprehensive after‑sales support, one‑year warranty, and online resources.

FAQ

What type of batteries does the M500 require?

The meter operates on two standard C‑size alkaline batteries, which provide up to 30 hours of continuous use under typical testing conditions.

Can the M500 be used for low‑voltage insulation testing?

Yes, the device includes a selectable low‑voltage mode that allows measurements down to 50 V, making it suitable for delicate electronics and low‑voltage circuits.

How accurate is the megohm reading?

Factory‑calibrated accuracy is ±1 % of reading plus one least‑significant digit across the full measurement range, meeting industry standards for insulation testing.

Is the M500 compatible with other test leads?

While the included 6‑inch leads are optimized for the meter’s back‑panel storage, the instrument accepts standard test leads with compatible connectors for extended reach.

What warranty coverage does Caviartool provide?

The M500 comes with a one‑year limited warranty covering defects in materials and workmanship, plus access to technical support for troubleshooting and calibration assistance.
